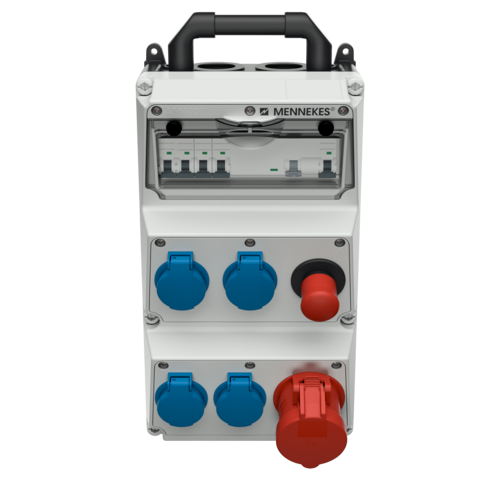

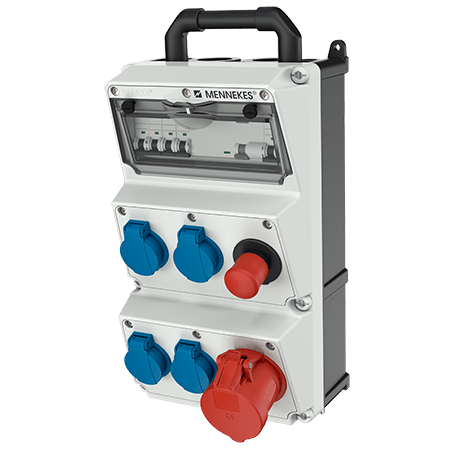

MENNEKES AMAXX® combination unit 931418
MENNEKES AMAXX® combination unit 931418 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 931418

CEE 32 A, 4 p, 400 V
French/Belgian standard
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.931418
  • EAN4015394286820
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 931418

CEE 32 A, 4 p, 400 V 1
French/Belgian standard 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 1 p+N, C
  • 1 off button
Pre-fuse max. 40 A
InA 38 A
RDF 0.7
Connection/feeder cable
  • for 1 cable up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 4800 g
Height 390 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX® combination unit 931418

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 931418

Appropriate accessories

AMAXX® combination unit 931418

MENNEKES Weather shield 15682

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

MENNEKES Weather shield 15690

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm
