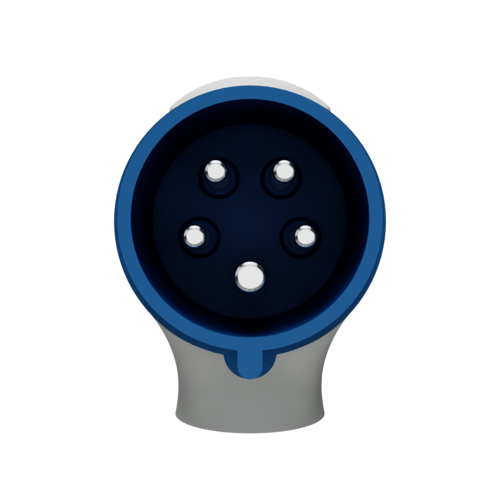

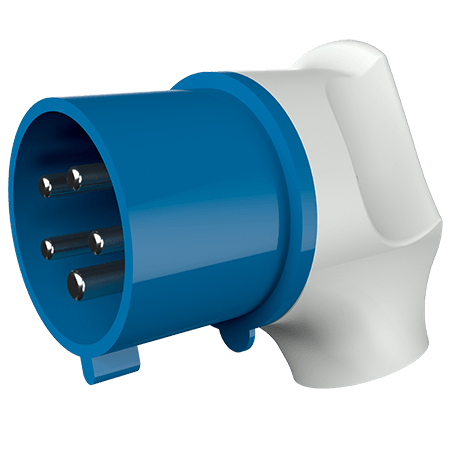

Angled plug 3424

Ampere 32 A
Clock position
  • screw terminals
  • nickel plated contacts
  • with grommet
  • especially suited for use with sockets of the Cepex range
  • Part no.3424
  • EAN4015394255307
  • Std. Pack. 16
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Angled plug 3424

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 44
Weight 260 g
Declaration of Conformity EAC
