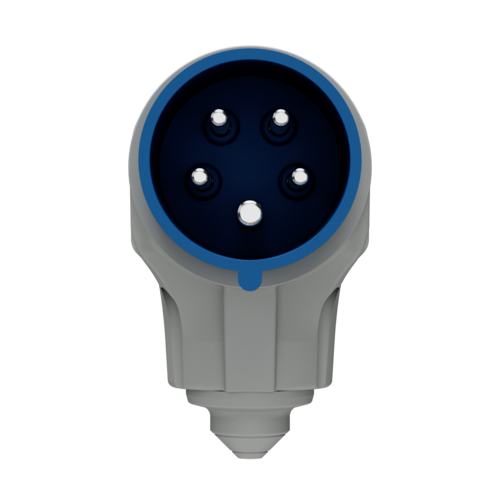

MENNEKES Angled plug VarioTOP 3983
MENNEKES Angled plug VarioTOP 3983 images3d

Angled plug VarioTOP 3983

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • cable entry hood rotating up to 60° to the left or the right
  • with grommet
  • cable entry hood in electric grey
  • especially suited for use with sockets of the Cepex range
  • Part no.3983
  • EAN4015394119586
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Angled plug VarioTOP 3983

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Weight 185 g
Certifications EAC
CQC

Directives

Angled plug VarioTOP 3983

Appropriate accessories

Angled plug VarioTOP 3983

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
