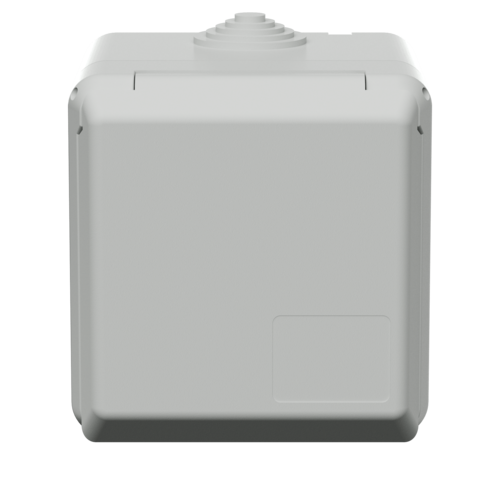

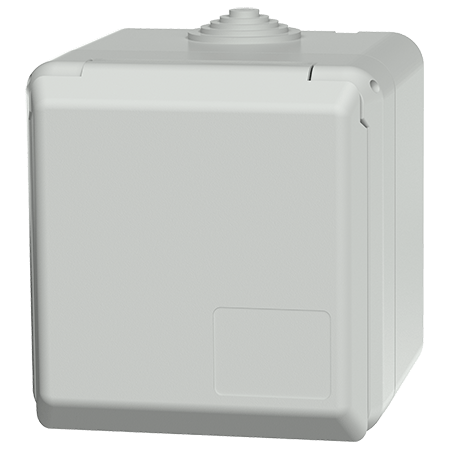

MENNEKES Cepex grounding type wall mounted socket 4900
MENNEKES Cepex grounding type wall mounted socket 4900 images3d

Cepex grounding type wall mounted socket 4900

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • one cable entry at top with M 25 stub, one M 25 blind entry (can be cut out) at bottom, one M 20 entry (can be cut out) at the back side, for cables from 7 bis 13 mm Ø
  • meeting DIN 18032 standards for ball rebound
  • Part no.4900
  • EAN4015394231165
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding type wall mounted socket 4900

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 260 g

Directives

Cepex grounding type wall mounted socket 4900

Appropriate accessories

Cepex grounding type wall mounted socket 4900

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets (Data, SCHUKO®, 16 A and 32 A)
