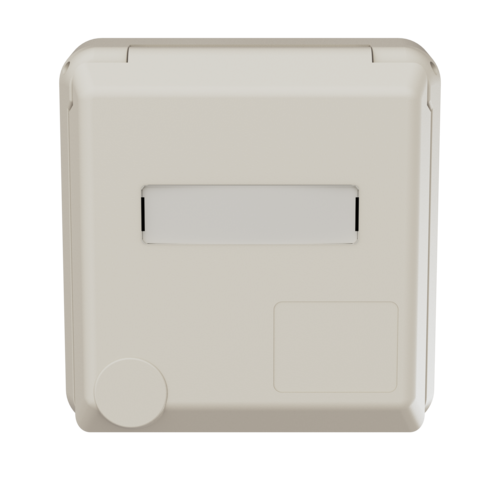

Cepex panel mounted socket SCHUKO® 4974

Ampere 16 A
Poles
Voltage
  • silver, alpine white or pearl white
  • screw terminals
  • with labelling field
  • suitable for installation in cable ducts and columns
  • Part no.4974
  • EAN4015394023074
  • Std. Pack. 5 Qty.

Technical specifications

Cepex panel mounted socket SCHUKO® 4974

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 139 g
Declaration of Conformity RU,EAC (Zwangszulassung)

Datasheets & Downloads

Cepex panel mounted socket SCHUKO® 4974

Product info Cepex panel mounted socket SCHUKO® 4974 PDF, 168 KB
CAD data STP Cepex panel mounted socket SCHUKO® 4974 ZIP, 732 KB
CAD data 3D DWG Cepex panel mounted socket SCHUKO® 4974 ZIP, 1 MB
Dimensional drawing portrait Cepex panel mounted socket SCHUKO® 4974 PNG, 60 KB
Dimensional drawing landscape format Cepex panel mounted socket SCHUKO® 4974 PNG, 60 KB

Appropriate accessories

Cepex panel mounted socket SCHUKO® 4974

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted sockets SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A sockets

more

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

more

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

more

Flush mounted installation box

Part no. 41404

for Cepex CEE sockets 16 A and 32 A and Cepex sockets SCHUKO®, can be combined with all Cepex panel mounted sockets

more
