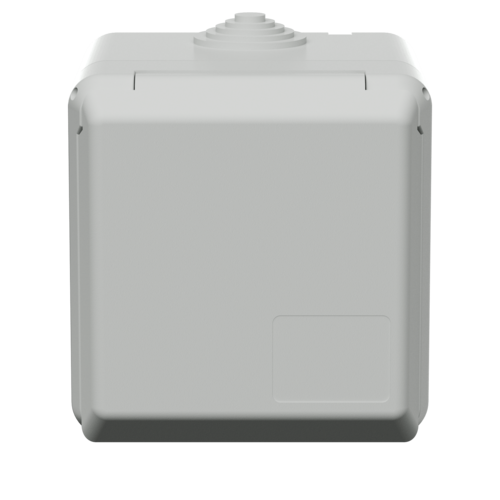

MENNEKES Cepex wall mounted socket 4102
MENNEKES Cepex wall mounted socket 4102 images3d

Cepex wall mounted socket 4102

Poles
Voltage
Clock position
  • screw terminals
  • cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • meeting DIN 18032 standards for ball rebound
  • Part no.4102
  • EAN4015394021391
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted socket 4102

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 288 g
Certifications VDE
EAC
CQC

Directives

Cepex wall mounted socket 4102

Appropriate accessories

Cepex wall mounted socket 4102

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A sockets
