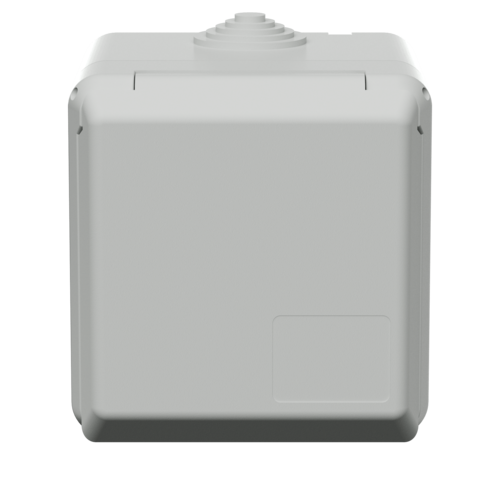

Cepex wall mounted socket 4103

Poles
Voltage
Clock position
  • screw terminals
  • cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • meeting DIN 18032 standards for ball rebound
  • Part no.4103
  • EAN4015394021407
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted socket 4103

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 303 g
Declaration of Conformity EAC
CQC
