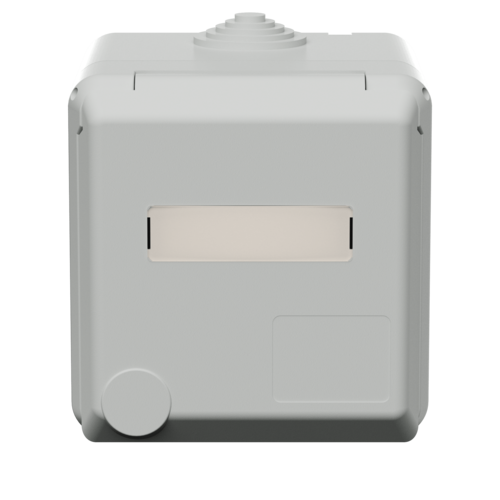

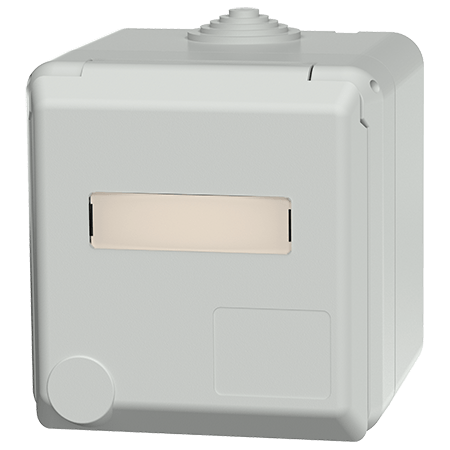

Cepex wall mounted socket 4137

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

with labelling field

Part no.4137
EAN4015394021834
Std. Pack. 5 Qty.

Technical specifications

Cepex wall mounted socket 4137

Ampere	32 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP 44
Shutter	No
Weight	364 g
Declaration of Conformity	DE,VDE CN,CQC

Dimensional drawing landscape format

Datasheets & Downloads

Cepex wall mounted socket 4137

Product info Cepex wall mounted socket 4137 PDF, 203 KB

Manufacturer‘s declaration Cepex wall mounted socket 4137 PDF, 37 KB

Dimensional drawing portrait Cepex wall mounted socket 4137 PNG, 98 KB

Dimensional drawing landscape format Cepex wall mounted socket 4137 PNG, 99 KB

Appropriate accessories

Cepex wall mounted socket 4137

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A sockets
