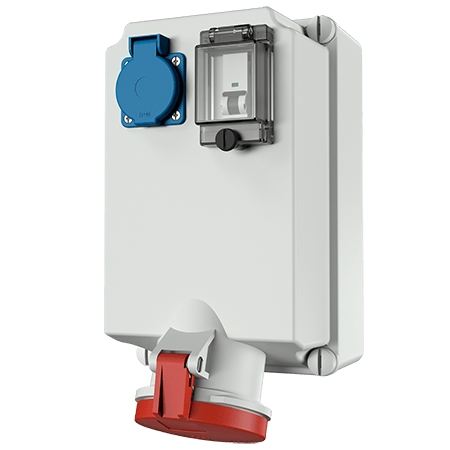

Combination unit 95354

CEE 63 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • screw terminals
  • CEE- and socket SCHUKO® in one enclosure
  • socket SCHUKO® fused with 1 MCB 16 A, 1 p, C
  • Part no.95354
  • EAN4015394091196
  • Std. Pack. 3 Qty.

Technical specifications

Combination unit 95354

CEE 63 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 1
Fusing
  • 1 MCB 16 A, 1 p, C
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP 44
Enclosure material Plastic
Weight 2539 g
Height 264 mm
Width 163 mm
Storage receptacle combination B
