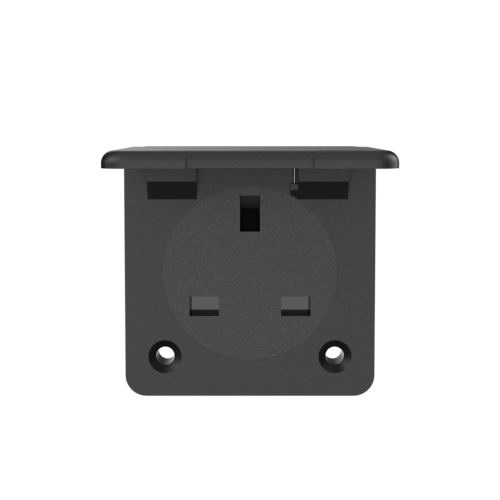

MENNEKES Grounding-type panel mounted socket 10713
MENNEKES Grounding-type panel mounted socket 10713 images3d

Grounding-type panel mounted socket 10713

Ampere 13 A
Poles
Voltage
  • British standard
  • with hinged lid
  • 3 screw terminals
  • with matching frame and seal
  • sockets cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10713
  • EAN4015394160069
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted socket 10713

Ampere 13 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter Yes
Flange 59.5x59.5 mm
Fixing hole 42.5x42.5 mm
Weight 63 g
Certifications EAC

Directives

Grounding-type panel mounted socket 10713
