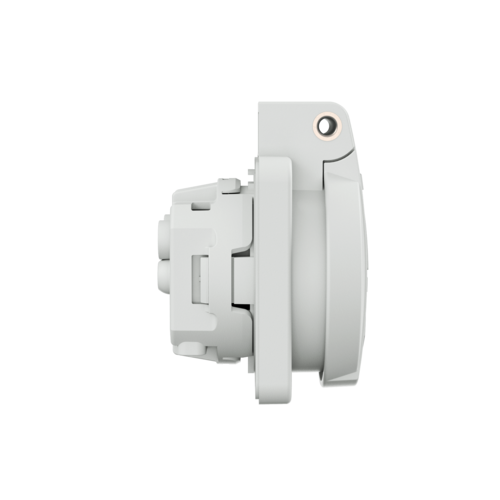

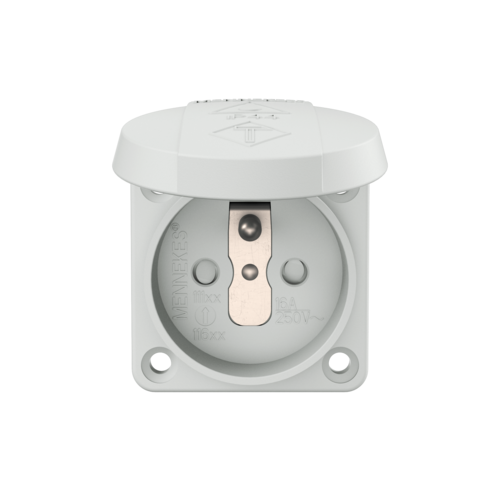

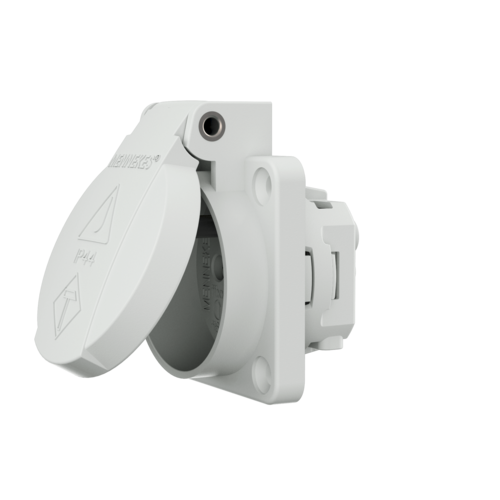

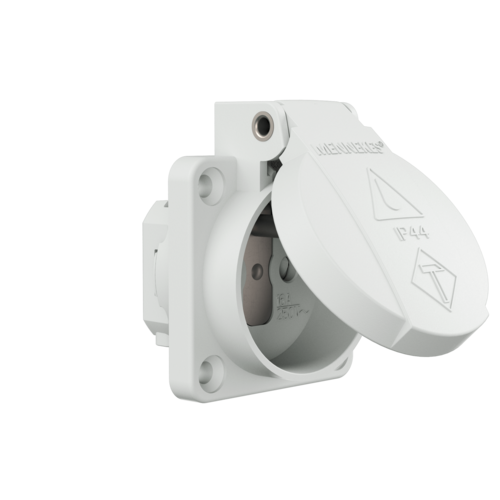

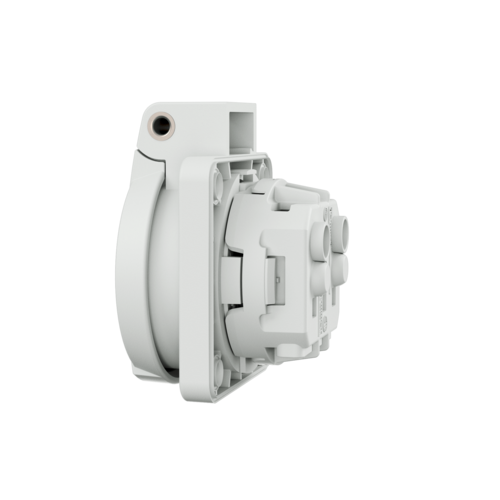

Grounding-type panel mounted socket 11180

Ampere 16 A
  • French-belgian standard
  • with hinged lid

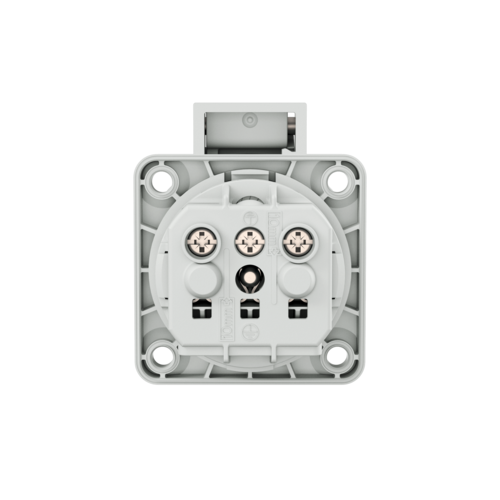

  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11180
  • EAN4015394184881
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted socket 11180

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 44
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 43 g
Declaration of Conformity EAC

Appropriate accessories

Grounding-type panel mounted socket 11180

Base for wall mounted socket

Part no. 10714

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm

Blanking flange

Part no. 41418

to close unused apertures, grey

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted sockets
