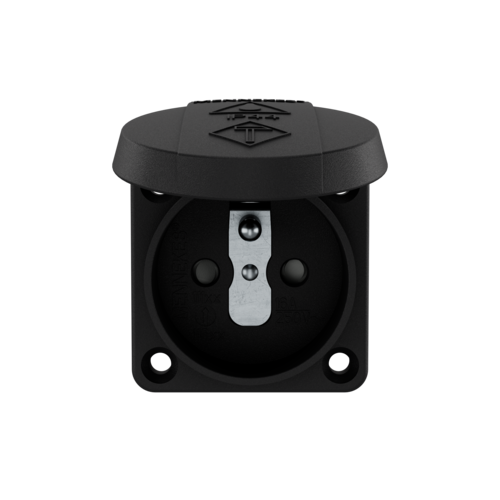

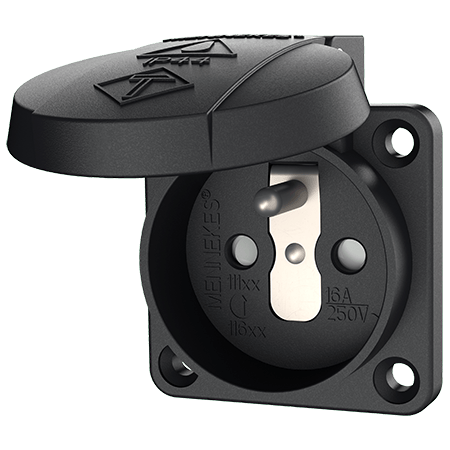

MENNEKES Grounding-type panel mounted socket 11182
MENNEKES Grounding-type panel mounted socket 11182 images3d

Grounding-type panel mounted socket 11182

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11182
  • EAN4015394236931
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted socket 11182

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 40 g

Directives

Grounding-type panel mounted socket 11182
