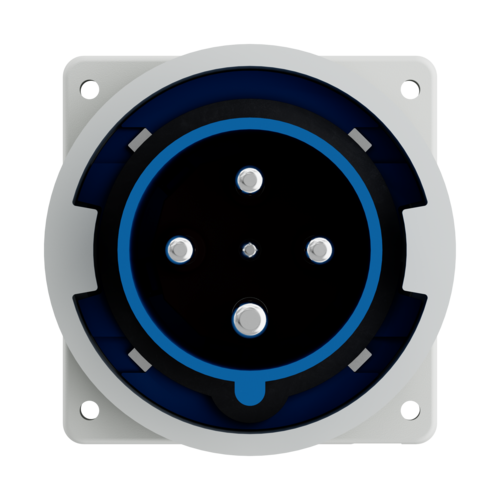

MENNEKES Panel mounted inlet 3413
MENNEKES Panel mounted inlet 3413 images3d

Panel mounted inlet 3413

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • Part no.3413
  • EAN4015394018957
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 3413

Ampere 125 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 1040 g
Certifications EAC
CQC

Directives

Panel mounted inlet 3413

Appropriate accessories

Panel mounted inlet 3413

MENNEKES Protective cover 40788

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
