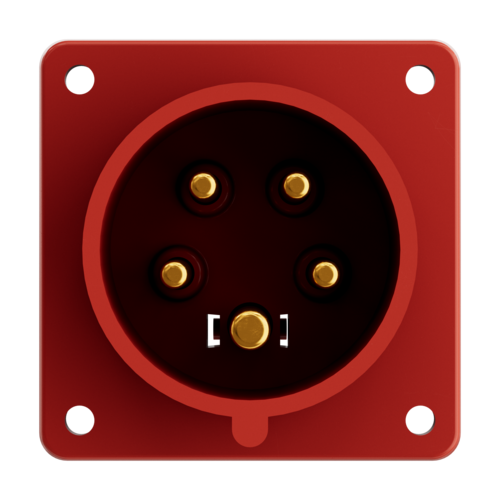

Panel mounted inlet 853

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.853
  • EAN4015394180623
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted inlet 853

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 120 g
Declaration of Conformity CN,CQC
DE,VDE (ÜG)

Appropriate accessories

Panel mounted inlet 853

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
