MENNEKES

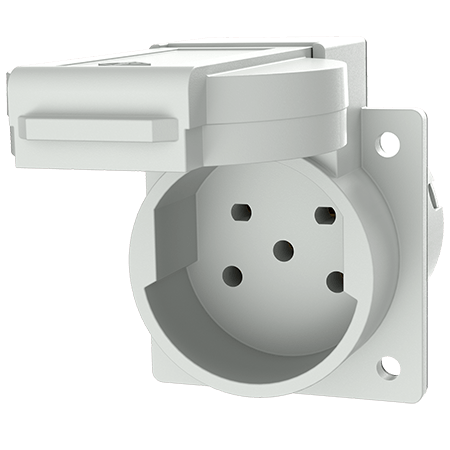

Panel mounted socket 10086

Ampere 10 A
Poles
Voltage
  • Swiss standard
  • type 15
  • with hinged lid
  • 5 screw terminals
  • socket cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10086
  • EAN4015394172680
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 10086

Ampere 10 A
Poles 5 p
Voltage 400 V
Connection technology Screw terminals
Contact standard
Protection type IP 54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 46 g
Declaration of Conformity EAC
