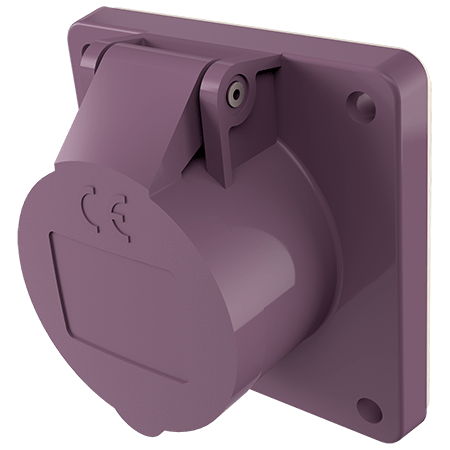

MENNEKES Panel mounted socket 1602

Panel mounted socket 1602

Poles
Voltage
  • screw terminals
  • straight
  • also suitable for cable ducts and flush mounted installation boxes
  • Part no.1602
  • EAN4015394012429
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1602

Ampere 16 A
Poles 2 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 126 g
Certifications EAC

Directives

Panel mounted socket 1602

Appropriate accessories

Panel mounted socket 1602

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136
