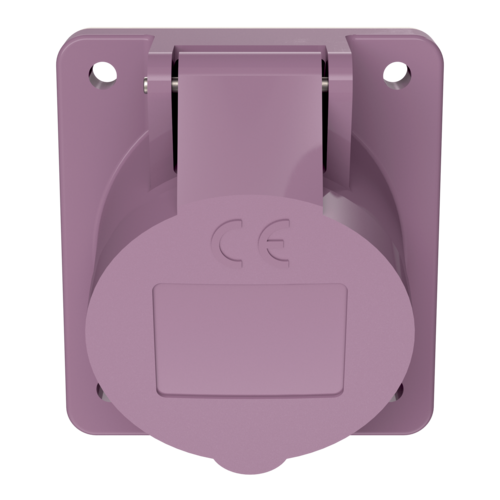

MENNEKES Panel mounted socket 2870
MENNEKES Panel mounted socket 2870 images3d

Panel mounted socket 2870

Ampere 16 A 32 A
Poles
Voltage
  • screw terminals
  • 20° inclination
  • Part no.2870
  • EAN4015394016830
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 2870

Ampere 32 A
Poles 3 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 53x47 mm
Inclination 20 °
Weight 143 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 2870

Product infoPanel mounted socket 2870 PDF, 181 KB
CAD data STPPanel mounted socket 2870 ZIP, 199 KB
CAD data 3D DWGPanel mounted socket 2870 ZIP, 538 KB
Dimensional drawing portraitPanel mounted socket 2870 PNG, 90 KB
Dimensional drawing landscape formatPanel mounted socket 2870 PNG, 90 KB

Directives

Panel mounted socket 2870

REACh
RoHS
