MENNEKES Panel mounted socket SCHUKO® 11011
MENNEKES Panel mounted socket SCHUKO® 11011 images3d

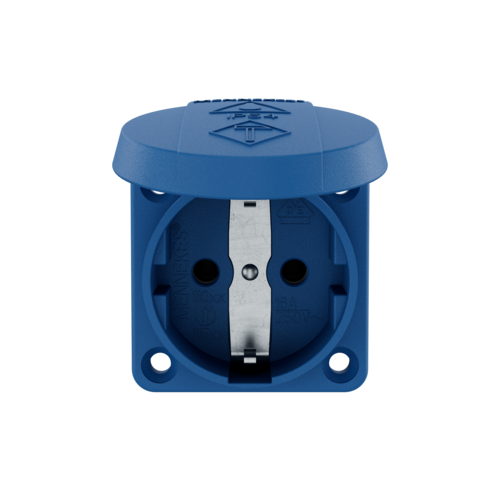

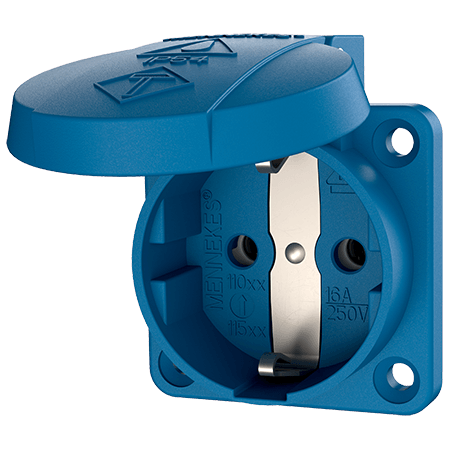

Panel mounted socket SCHUKO® 11011

Ampere 16 A
Poles
Voltage
  • for stationary use
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11011
  • EAN4015394136729
  • Std. Pack. 20
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket SCHUKO® 11011

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 42 g
Certifications VDE
EAC

Directives

Panel mounted socket SCHUKO® 11011

Appropriate accessories

Panel mounted socket SCHUKO® 11011

MENNEKES Base for wall mounted socket 10714

Base for wall mounted socket

Part no. 10714

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm

MENNEKES Base for wall mounted socket 10716

Base for wall mounted socket

Part no. 10716

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm

MENNEKES Blanking flange 41418

Blanking flange

Part no. 41418

to close unused apertures, grey

MENNEKES Fixing frame 19266106

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted sockets
