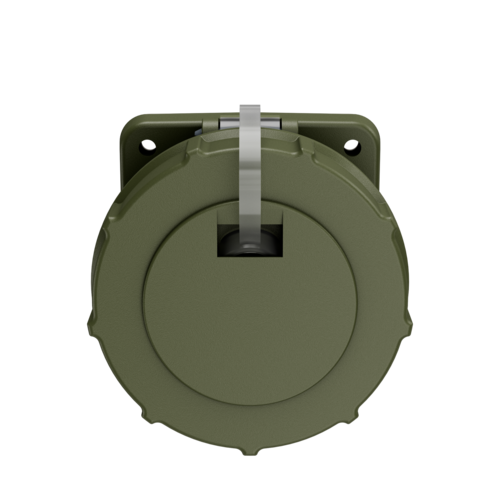

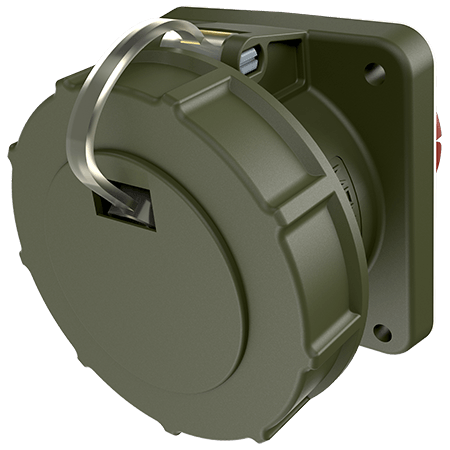

MENNEKES Panel mounted socket TM 23177
MENNEKES Panel mounted socket TM 23177 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket TM 23177

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.23177
  • EAN4015394043577
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket TM 23177

Ampere 63 A
Poles 5 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
X-CONTACT
Protection type IP67
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 745 g
Certifications EAC
