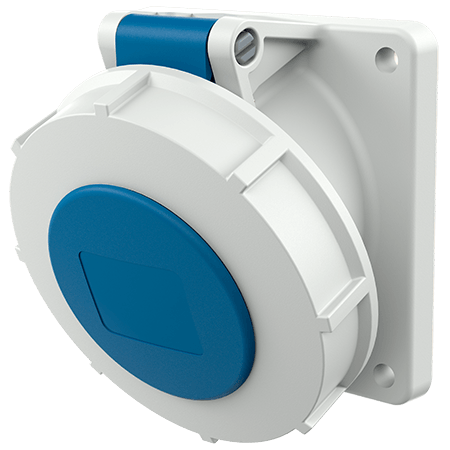

Panel mounted socket with TwinCONTACT 1168

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • standard flange dimensions
  • suitable for through wiring
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1168
  • EAN4015394221487
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted socket with TwinCONTACT 1168

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 67
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 120 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1168

Product info Panel mounted socket with TwinCONTACT 1168 PDF, 195 KB
Manufacturer‘s declaration Panel mounted socket with TwinCONTACT 1168 PDF, 28 KB
CAD data STP Panel mounted socket with TwinCONTACT 1168 ZIP, 2 MB
CAD data 3D DWG Panel mounted socket with TwinCONTACT 1168 ZIP, 3 MB
Dimensional drawing portrait Panel mounted socket with TwinCONTACT 1168 PNG, 100 KB
Dimensional drawing landscape format Panel mounted socket with TwinCONTACT 1168 PNG, 102 KB

Mounting instruction video

Video mounting instructions

Appropriate accessories

Panel mounted socket with TwinCONTACT 1168

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
