Show all Panel mounted sockets / Show all Panel mounted socket with TwinCONTACT

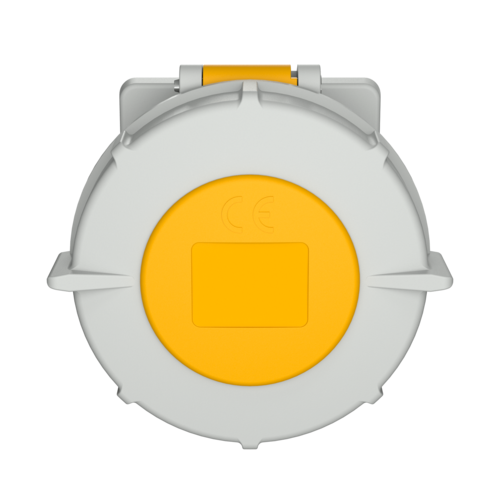

MENNEKES Panel mounted socket with TwinCONTACT 1812
MENNEKES Panel mounted socket with TwinCONTACT 1812 images3d

Panel mounted socket with TwinCONTACT 1812

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1812
  • EAN4015394215202
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket with TwinCONTACT 1812

Ampere 32 A
Poles 4 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 255 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1812

Product infoPanel mounted socket with TwinCONTACT 1812 PDF, 147 KB
Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1812 PNG, 93 KB
Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1812 PNG, 94 KB

Directives

Panel mounted socket with TwinCONTACT 1812

REACh
RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1812

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey
