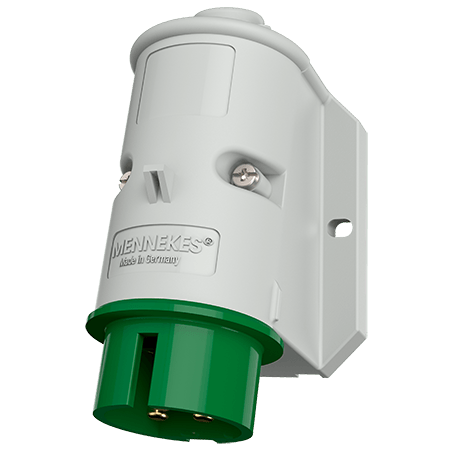

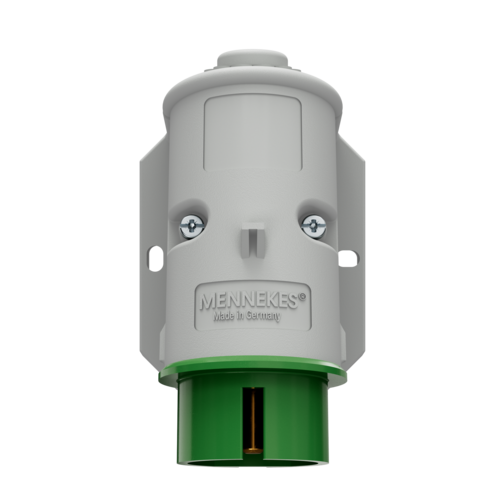

MENNEKES Wall mounted inlet 1978
MENNEKES Wall mounted inlet 1978 images3d

Wall mounted inlet 1978

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the back side
  • Part no.1978
  • EAN4015394012986
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 1978

Ampere 32 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 166 g
Certifications EAC
CQC

Directives

Wall mounted inlet 1978

Appropriate accessories

Wall mounted inlet 1978

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
