MENNEKES Wall mounted socket 1035

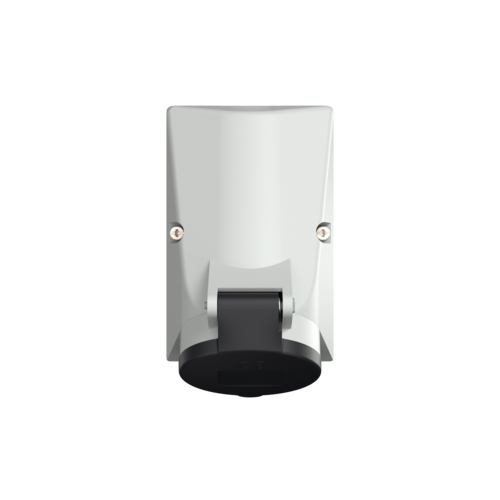

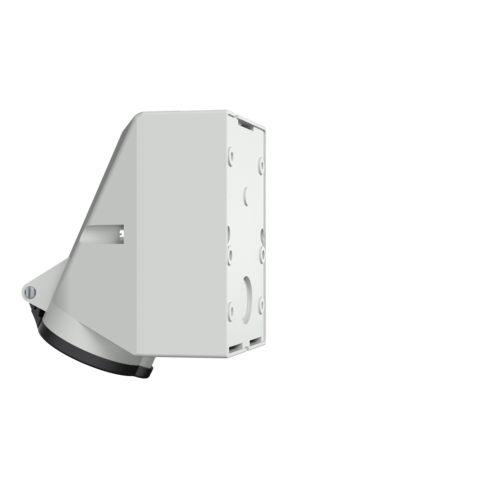

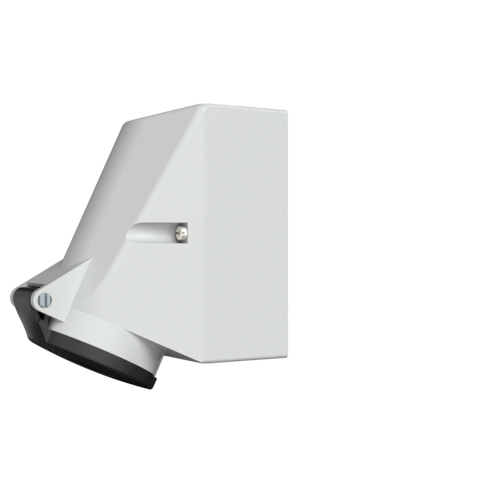

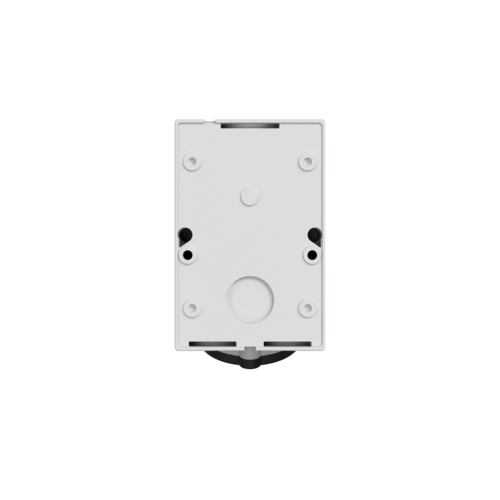

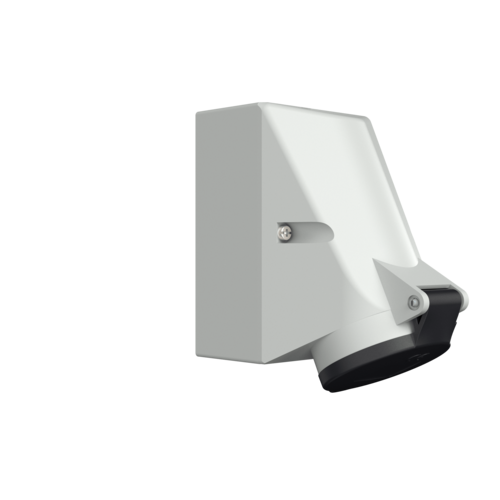

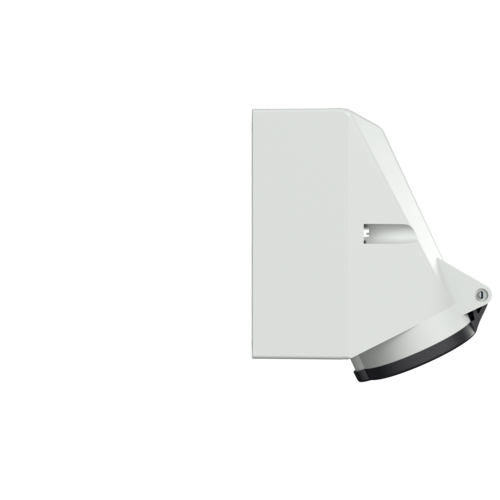

MENNEKES Wall mounted socket 1035 images3d

Wall mounted socket 1035

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • internal fixing
  • one cable entry at the top, two blind entries (can be cut out) at the bottom
  • enclosure can be turned through 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.1035
  • EAN4015394006893
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 1035

Ampere 16 A
Poles 7 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 335 g
Certifications EAC
CQC

Directives

Wall mounted socket 1035

Appropriate accessories

Wall mounted socket 1035

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC

Frequently asked questions about the product

What do I use a 7-pin device for?

7-pin plugs and sockets can be used for any application that requires additional contacts. You can find our range of 7-pin products on pages 70, 71 & 72 of the UK catalogue. More information
