MENNEKES

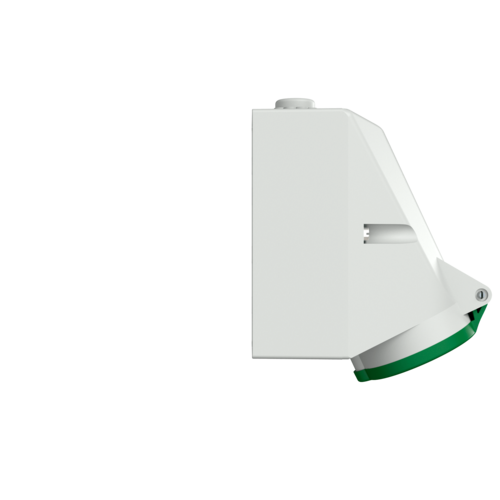

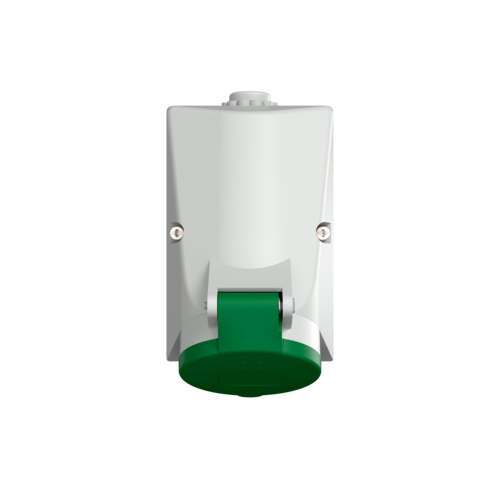

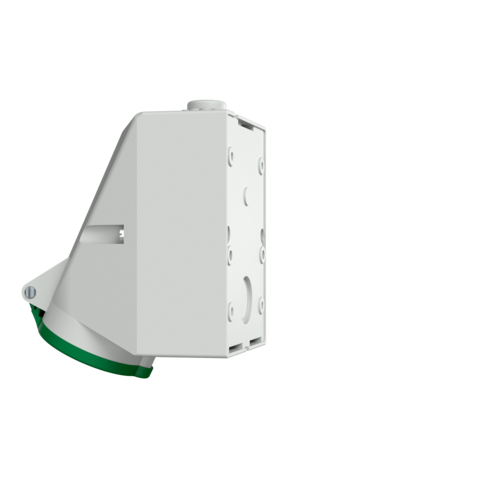

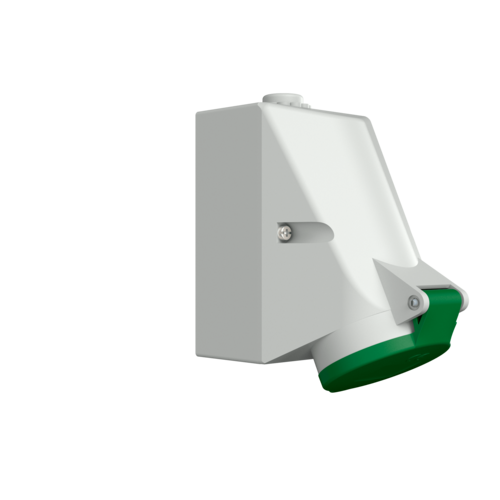

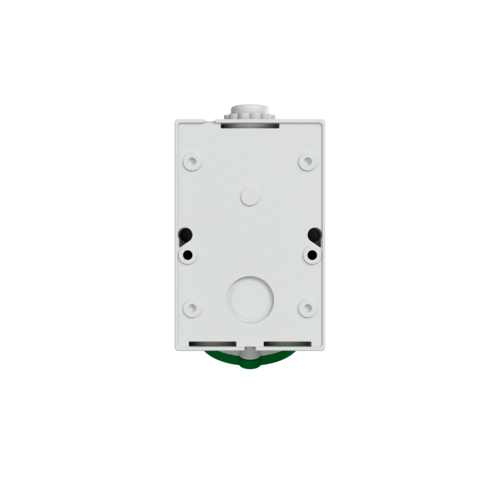

Wall mounted socket 3046

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top, two blind cable entries (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.3046
  • EAN4015394017554
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 3046

Ampere 16 A
Poles 5 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 291 g
Declaration of Conformity EAC
CQC
