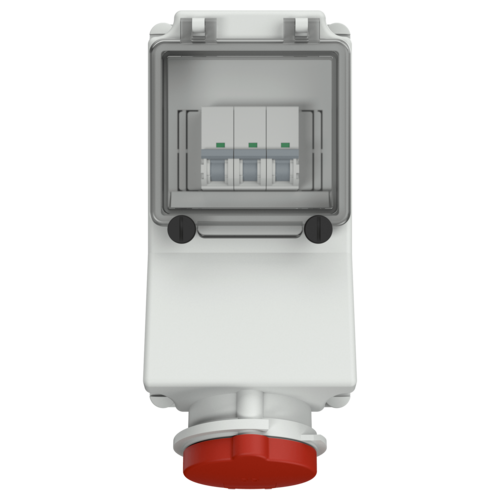

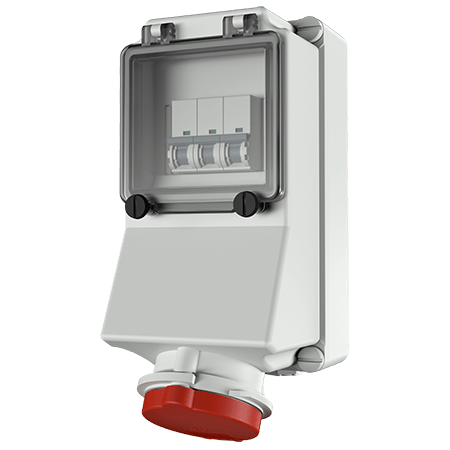

MENNEKES Wall mounted socket 5014
MENNEKES Wall mounted socket 5014 images3d

Wall mounted socket 5014

Poles
Voltage
Clock position
  • screw terminals
  • fused with circuit-breaker, K-characteristics
  • Part no.5014
  • EAN4015394023333
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted socket 5014

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1350 g
Certifications EAC

Directives

Wall mounted socket 5014
