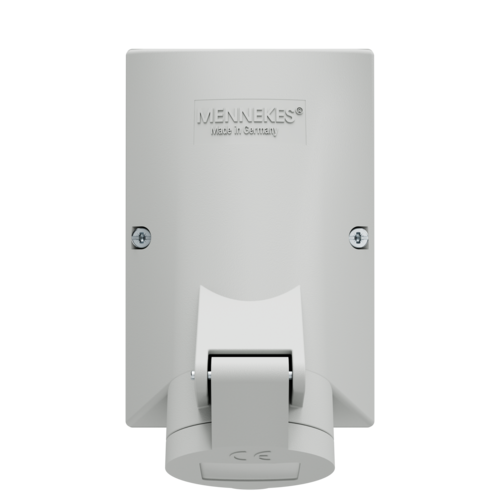

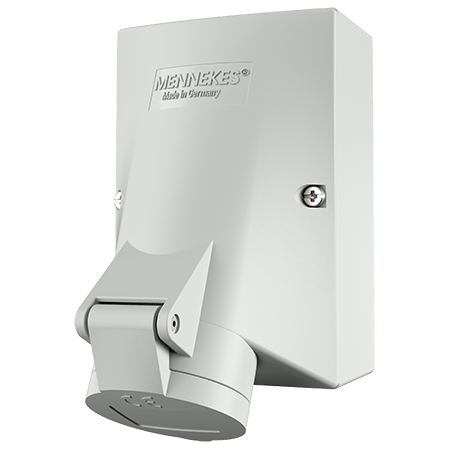

Wall mounted socket 596

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at bottom
  • lower part of enclosure base can be turned 180°
  • Part no.596
  • EAN4015394004394
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 596

Ampere 32 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 184 g
Declaration of Conformity EAC
CQC

Appropriate accessories

Wall mounted socket 596

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
