MENNEKES Wall mounted socket DUOi 5611409G
MENNEKES Wall mounted socket DUOi 5611409G images3d

Please accept marketing-cookies to watch this video.

Video varieties

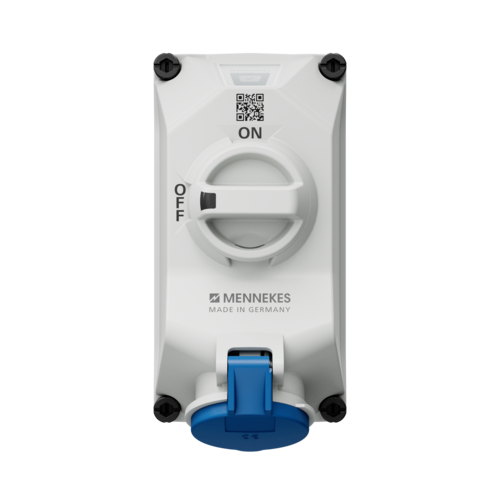

Wall mounted socket DUOi 5611409G

Twice the protection - our DUOi wall socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under current load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall socket with IP44 protection is protected against the ingress of foreign bodies and splash water. The clearly visible LED lights up green when switched on and goes out in the event of a power flow fault.
Poles
Voltage
Clock position
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • highly heat resistant contact carrier
  • 3 pole switch
  • sockets can be padlocked
  • Part no.5611409G
  • EAN4015394303794
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket DUOi 5611409G

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1246 g
