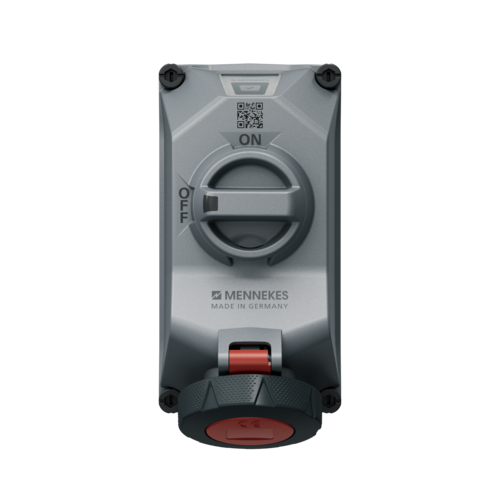

MENNEKES Wall mounted socket DUOi R 5812506T
MENNEKES Wall mounted socket DUOi R 5812506T images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket DUOi R 5812506T

Twice the protection - our DUOi wall mounted socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted socket with IP67/IP69 protection is protected against temporary submersion and high pressure cleaning. The convenient LED lights up green when switched on and goes out in the event of a power flow fault.
Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • highly resistant to chemicals
  • switched
  • mechanical DUO-interlock
  • highly heat resistant contact carrier
  • switched N conductor, with auxiliary contact switch 2 NC and 2 NO
  • sockets can be padlocked
  • sealed against dust, temporary submersion and high pressure cleaning
  • Part no.5812506T
  • EAN4015394303350
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket DUOi R 5812506T

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP67 / IP69
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 1355 g

Videos

Wall mounted socket DUOi R 5812506T

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted socket DUOi R 5812506T
