Show all Cepex Design / Show all Cepex double socket

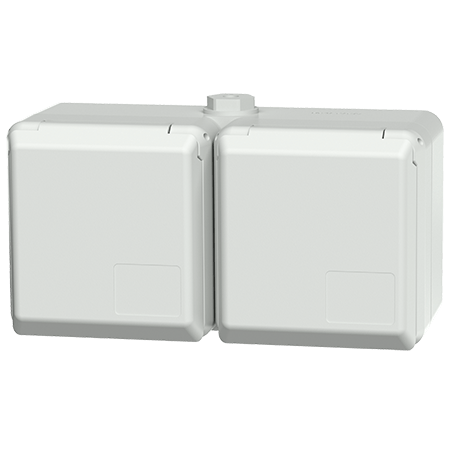

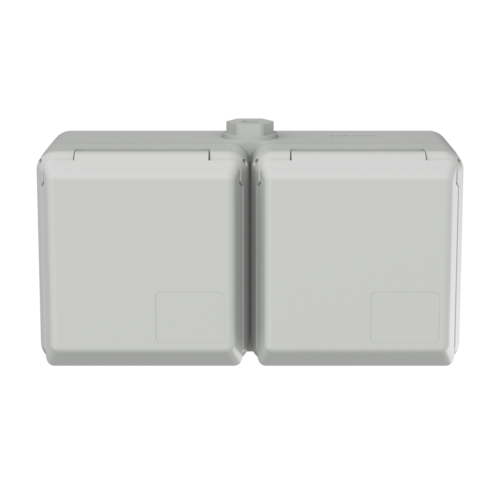

MENNEKES Cepex double socket 4204
MENNEKES Cepex double socket 4204 images3d

Cepex double socket 4204

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • grey
  • meeting DIN 18032 standards for ball rebound
  • amend index YA to part number for version without rubber gland
  • Part no.4204
  • EAN4015394022558
  • Std. Pack. 5

Technical specifications

Cepex double socket 4204

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 548 g
Certifications EAC
CQC

Datasheets & Downloads

Cepex double socket 4204

Product infoCepex double socket 4204 PDF, 157 KB
Dimensional drawing portraitCepex double socket 4204 PNG, 81 KB
Dimensional drawing landscape formatCepex double socket 4204 PNG, 82 KB

Directives

Cepex double socket 4204

REACh
RoHS

Appropriate accessories

Cepex double socket 4204

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted sockets (Data, SCHUKO®, 16 A and 32 A)

more
