Show all Cepex Design / Show all Cepex flush mounted socket

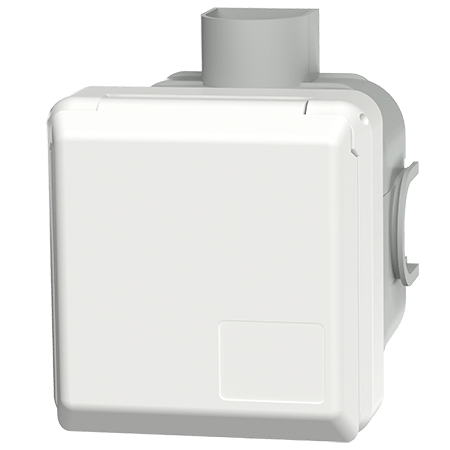

Cepex flush mounted socket 4245

Name: Cepex flush mounted socket
Brand: MENNEKES
SKU: 4245

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
with flush mounted installation box

meeting DIN 18032 standards for ball rebound

Part no.4245
EAN4015394022930
Std. Pack. 5

Technical specifications

Cepex flush mounted socket 4245

Ampere	32 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	345 g
Certifications	VDE EAC

Datasheets & Downloads

Cepex flush mounted socket 4245

Product infoCepex flush mounted socket 4245 PDF, 176 KB

Manufacturer‘s declarationCepex flush mounted socket 4245 PDF, 38 KB

Dimensional drawing portraitCepex flush mounted socket 4245 PNG, 89 KB

Dimensional drawing landscape formatCepex flush mounted socket 4245 PNG, 90 KB

Directives

Cepex flush mounted socket 4245

REACh

RoHS

Appropriate accessories

Cepex flush mounted socket 4245

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

Protection plate

Part no. 41414

for flush mounted installation box to protect fixing holes and the box from plaster and dirt until the socket is installed

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets
