Show all Connectors
/
Show all Connector AM-TOP®
Connector AM-TOP® 557
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
screw terminals
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
557
EAN
4015394004134
Std. Pack.
10
Add to shopping basket
Technical specifications

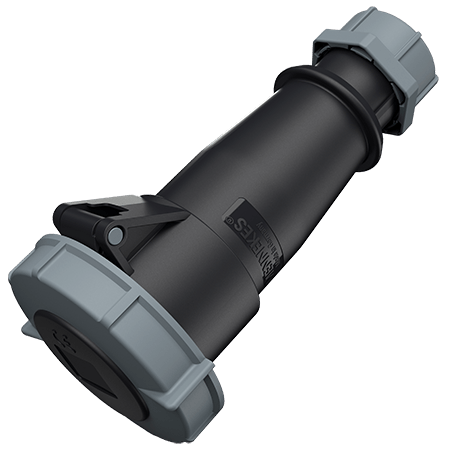

Connector AM-TOP® 557
Ampere
32 A
Poles
4 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Weight
302 g
Certifications
CQC
VDE
Datasheets & Downloads
Connector AM-TOP® 557
Product info
Connector AM-TOP® 557
PDF, 117 KB
Manufacturer‘s declaration
Connector AM-TOP® 557
PDF, 37 KB
Mounting instructions
Connector AM-TOP® 557
PDF, 2 MB
Dimensional drawing portrait
Connector AM-TOP® 557
PNG, 71 KB
Dimensional drawing landscape format
Connector AM-TOP® 557
PNG, 71 KB
Directives
Connector AM-TOP® 557
REACh
RoHS
