Show all 7 pole
/
Show all Connector AM-TOP®

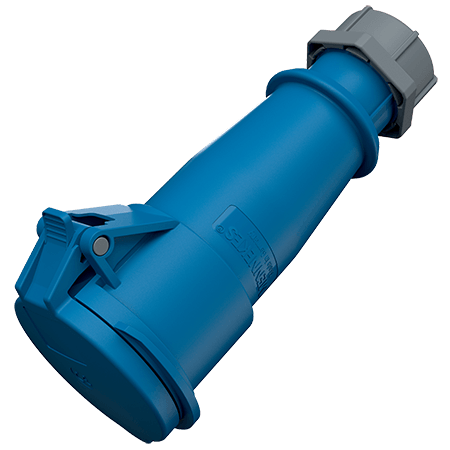

Connector AM-TOP® 747
Ampere
16 A
32 A
Poles
7 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
with highly heat resistant contact carrier
nickel plated contacts
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
747
EAN
4015394005742
Std. Pack.
10
Add to shopping basket
Technical specifications
Connector AM-TOP® 747
Ampere
32 A
Poles
7 p
Voltage
230 V
Clock position
9 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
highly heat resistant contact carrier
nickel plated contacts
Protection type
IP44
Weight
346 g
Certifications
EAC
CQC
Datasheets & Downloads
Connector AM-TOP® 747
Product info
Connector AM-TOP® 747
PDF, 130 KB
Mounting instructions
Connector AM-TOP® 747
PDF, 2 MB
Dimensional drawing portrait
Connector AM-TOP® 747
PNG, 67 KB
Dimensional drawing landscape format
Connector AM-TOP® 747
PNG, 67 KB
Directives
Connector AM-TOP® 747
REACh
RoHS
