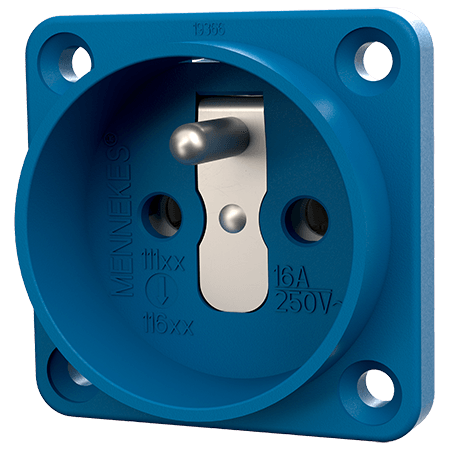

MENNEKES Grounding-type panel mounted socket 11611
MENNEKES Grounding-type panel mounted socket 11611 images3d

Grounding-type panel mounted socket 11611

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • without hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11611
  • EAN4015394193142
  • Std. Pack. 20

Technical specifications

Grounding-type panel mounted socket 11611

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 30 g
Certifications EAC

Datasheets & Downloads

Grounding-type panel mounted socket 11611

Product infoGrounding-type panel mounted socket 11611 PDF, 184 KB
CAD data STPGrounding-type panel mounted socket 11611 ZIP, 761 KB
CAD data 3D DWGGrounding-type panel mounted socket 11611 ZIP, 1 MB
Dimensional drawing portraitGrounding-type panel mounted socket 11611 PNG, 34 KB
Dimensional drawing landscape formatGrounding-type panel mounted socket 11611 PNG, 80 KB

Directives

Grounding-type panel mounted socket 11611

REACh
RoHS

Appropriate accessories

Grounding-type panel mounted socket 11611

MENNEKES Base for wall mounted socket 10715

Base for wall mounted socket

Part no. 10715

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm
