Show all Inlets
/
Show all Panel mounted inlet

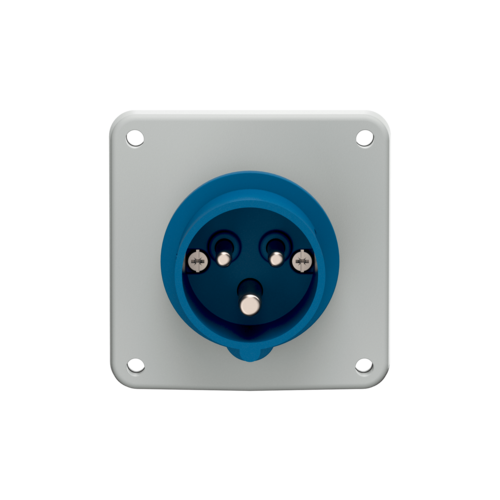

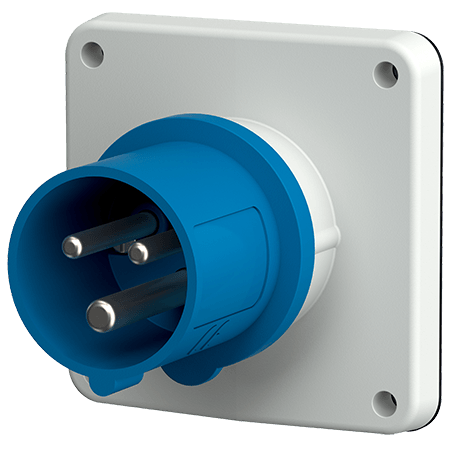

Panel mounted inlet 812
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
nickel-plated contacts
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Part no.
812
EAN
4015394116714
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted inlet 812
Ampere
16 A
Poles
3 p
Voltage
230 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
nickel plated contacts
Protection type
IP44
Weight
136 g
Certifications
VDE (ÜG)
CQC
Datasheets & Downloads
Panel mounted inlet 812
Product info
Panel mounted inlet 812
PDF, 184 KB
Manufacturer‘s declaration
Panel mounted inlet 812
PDF, 37 KB
CAD data STP
Panel mounted inlet 812
ZIP, 229 KB
CAD data 3D DWG
Panel mounted inlet 812
ZIP, 795 KB
Dimensional drawing portrait
Panel mounted inlet 812
PNG, 97 KB
Dimensional drawing landscape format
Panel mounted inlet 812
PNG, 98 KB
Directives
Panel mounted inlet 812
REACh
RoHS
