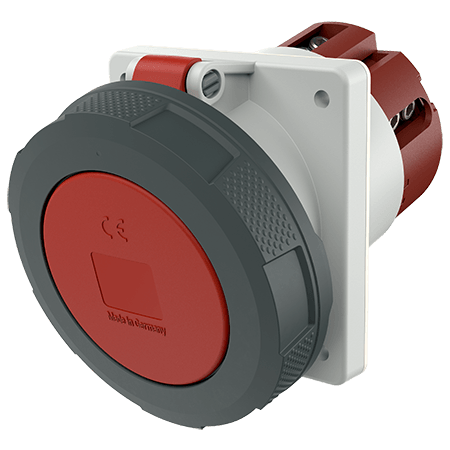

MENNEKES Panel mounted socket 216A

MENNEKES Panel mounted socket 216A images3d

Please accept marketing-cookies to watch this video.

Panel mounted socket 216A

Ampere 63 A 125 A

Poles

Voltage

Clock position

screw terminals
X-CONTACT®

15° inclination
products with pilot contact on request

Part no.216A
EAN4015394001034
Std. Pack. 5

Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Panel mounted socket 216A

Ampere	125 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT
Protection type	IP67
Flange	114x110 mm
Fixing hole	90x90 mm
Inclination	15 °
Weight	1171 g
Certifications	VDE

Dimensional drawing landscape format

Datasheets & Downloads

Panel mounted socket 216A

Product infoPanel mounted socket 216A PDF, 177 KB

Manufacturer‘s declarationPanel mounted socket 216A PDF, 37 KB

CAD data STPPanel mounted socket 216A ZIP, 1 MB

CAD data 3D DWGPanel mounted socket 216A ZIP, 3 MB

Dimensional drawing portraitPanel mounted socket 216A PNG, 108 KB

Dimensional drawing landscape formatPanel mounted socket 216A PNG, 109 KB

Videos

Panel mounted socket 216A

Please accept marketing-cookies to watch this video.

Directives

Panel mounted socket 216A
