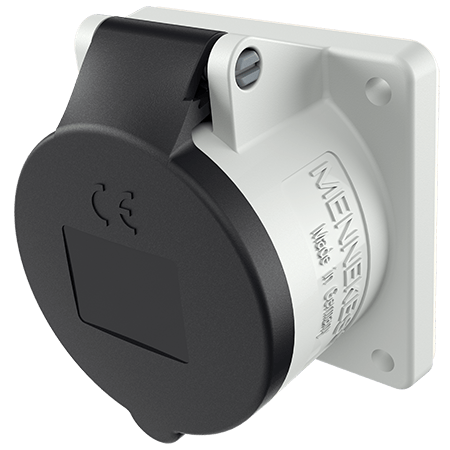

MENNEKES Panel mounted socket 3066

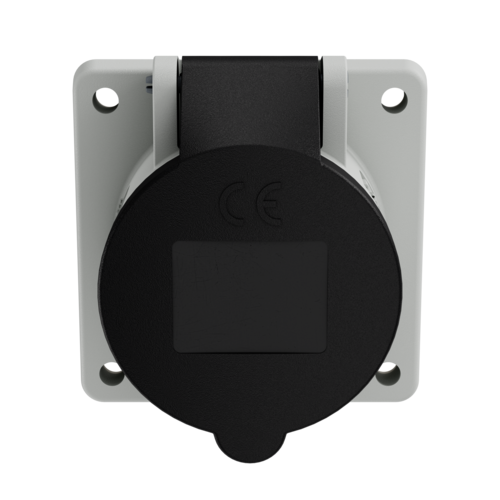

MENNEKES Panel mounted socket 3066 images3d

Panel mounted socket 3066

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.3066
  • EAN4015394128564
  • Std. Pack. 10

Technical specifications

Panel mounted socket 3066

Ampere 32 A
Poles 4 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 207 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 3066

Product infoPanel mounted socket 3066 PDF, 366 KB
Dimensional drawing portraitPanel mounted socket 3066 PNG, 262 KB
Dimensional drawing landscape formatPanel mounted socket 3066 PNG, 278 KB

Directives

Panel mounted socket 3066

REACh
RoHS

Appropriate accessories

Panel mounted socket 3066

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
