Show all Panel mounted sockets switched and interlocked
/
Show all Panel mounted socket

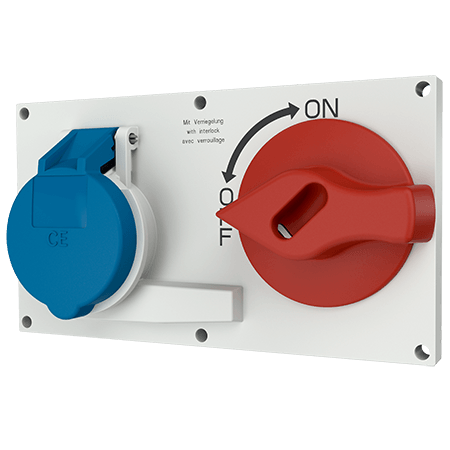

Panel mounted socket 7503
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
for horizontal installation
switched
mechanical DUO-interlock
sockets can be padlocked
Part no.
7503
EAN
4015394227830
Std. Pack.
5
Add to shopping basket
X-CONTACT®
Innovative contact sleeve technology
Read more
Technical specifications
Panel mounted socket 7503
Ampere
16 A
Poles
3 p
Voltage
230 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Enclosure material
Plastic
Weight
510 g
Certifications
CQC
Datasheets & Downloads
Panel mounted socket 7503
Product info
Panel mounted socket 7503
PDF, 127 KB
Manufacturer‘s declaration
Panel mounted socket 7503
PDF, 37 KB
CAD data STP
Panel mounted socket 7503
ZIP, 1 MB
CAD data 3D DWG
Panel mounted socket 7503
ZIP, 2 MB
Dimensional drawing portrait
Panel mounted socket 7503
PNG, 54 KB
Dimensional drawing landscape format
Panel mounted socket 7503
PNG, 54 KB
Directives
Panel mounted socket 7503
REACh
RoHS
