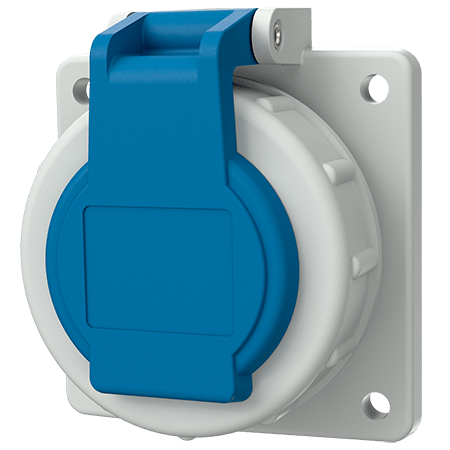

MENNEKES Panel mounted socket SCHUKO® 17002
MENNEKES Panel mounted socket SCHUKO® 17002 images3d

Panel mounted socket SCHUKO® 17002

Ampere 16 A
Poles
Voltage
  • plug-in terminals
  • hinged bayonet lock lid
  • rectangular flange
  • four fixing holes
  • Part no.17002
  • EAN4015394288206
  • Std. Pack. 10

Technical specifications

Panel mounted socket SCHUKO® 17002

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP68
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 108 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket SCHUKO® 17002

Product infoPanel mounted socket SCHUKO® 17002 PDF, 127 KB
CAD data STPPanel mounted socket SCHUKO® 17002 ZIP, 873 KB
CAD data 3D DWGPanel mounted socket SCHUKO® 17002 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket SCHUKO® 17002 PNG, 38 KB
Dimensional drawing landscape formatPanel mounted socket SCHUKO® 17002 PNG, 37 KB

Directives

Panel mounted socket SCHUKO® 17002

REACh
RoHS
