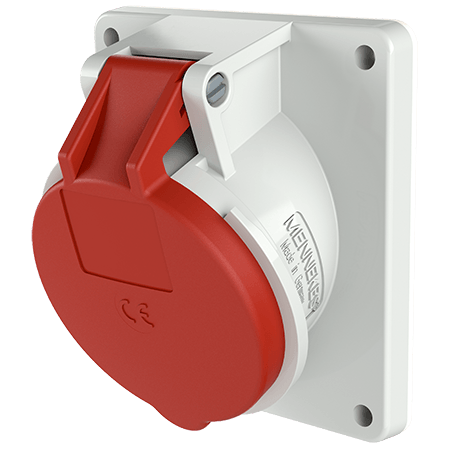

MENNEKES Panel mounted socket with TwinCONTACT 1638

Panel mounted socket with TwinCONTACT 1638

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • 32 A sockets are designed for adding an auxiliary contact switch
  • Part no.1638
  • EAN4015394210153
  • Std. Pack. 10

Technical specifications

Panel mounted socket with TwinCONTACT 1638

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 240 g
Certifications VDE
EAC
CQC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1638

Product infoPanel mounted socket with TwinCONTACT 1638 PDF, 177 KB
CAD data STPPanel mounted socket with TwinCONTACT 1638 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket with TwinCONTACT 1638 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1638 PNG, 94 KB
Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1638 PNG, 95 KB

Directives

Panel mounted socket with TwinCONTACT 1638

REACh
RoHS
