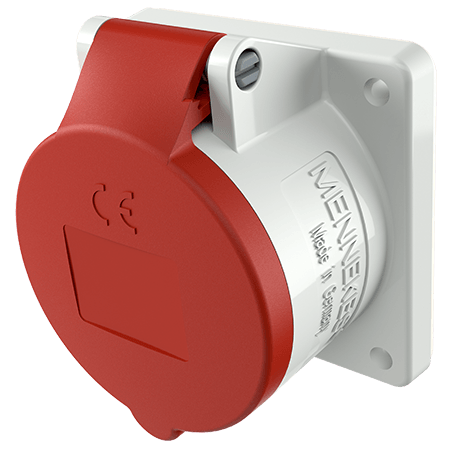

MENNEKES Panel mounted socket with TwinCONTACT 1788

Panel mounted socket with TwinCONTACT 1788

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1788
  • EAN4015394214946
  • Std. Pack. 10

Technical specifications

Panel mounted socket with TwinCONTACT 1788

Ampere 32 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 178 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1788

Product infoPanel mounted socket with TwinCONTACT 1788 PDF, 171 KB
Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1788 PNG, 34 KB
Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1788 PNG, 35 KB

Directives

Panel mounted socket with TwinCONTACT 1788

REACh
RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1788

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
