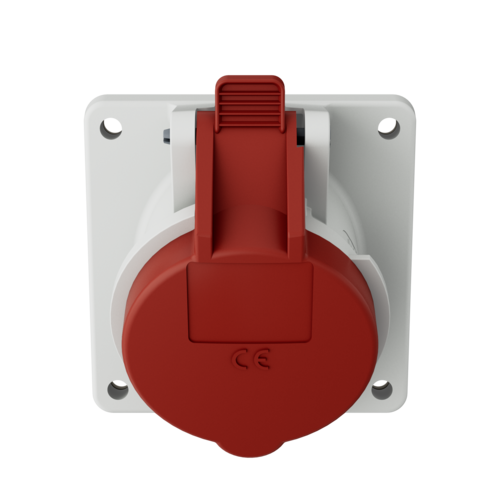

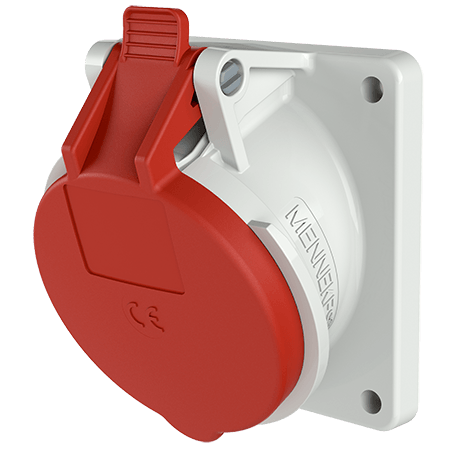

MENNEKES Panel mounted socket with TwinCONTACT 3048

Panel mounted socket with TwinCONTACT 3048

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • standard flange dimensions
  • 20° inclination
  • sockets are designed for adding an auxiliary contact switch
  • Part no.3048
  • EAN4015394221647
  • Std. Pack. 10

Technical specifications

Panel mounted socket with TwinCONTACT 3048

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 140 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 3048

Product infoPanel mounted socket with TwinCONTACT 3048 PDF, 182 KB
CAD data STPPanel mounted socket with TwinCONTACT 3048 ZIP, 2 MB
CAD data 3D DWGPanel mounted socket with TwinCONTACT 3048 ZIP, 3 MB
Dimensional drawing portraitPanel mounted socket with TwinCONTACT 3048 PNG, 100 KB
Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 3048 PNG, 101 KB

Directives

Panel mounted socket with TwinCONTACT 3048

REACh
RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 3048

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
