Show all Phase inverter plugs / Show all Phase inverter plug AM-TOP®

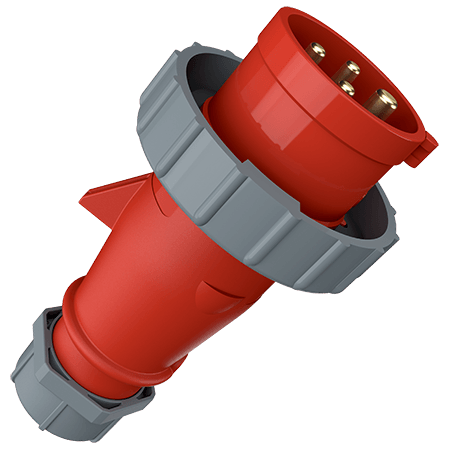

MENNEKES Phase inverter plug AM-TOP® 3339
MENNEKES Phase inverter plug AM-TOP® 3339 images3d

Phase inverter plug AM-TOP® 3339

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3339
  • EAN4015394154549
  • Std. Pack. 10

Technical specifications

Phase inverter plug AM-TOP® 3339

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 178 g
Certifications VDE
EAC
CQC

Datasheets & Downloads

Phase inverter plug AM-TOP® 3339

Product infoPhase inverter plug AM-TOP® 3339 PDF, 151 KB
Manufacturer‘s declarationPhase inverter plug AM-TOP® 3339 PDF, 37 KB
Mounting instructionsPhase inverter plug AM-TOP® 3339 PDF, 2 MB
Dimensional drawing portraitPhase inverter plug AM-TOP® 3339 PNG, 90 KB
Dimensional drawing landscape formatPhase inverter plug AM-TOP® 3339 PNG, 91 KB

Directives

Phase inverter plug AM-TOP® 3339

REACh
RoHS
