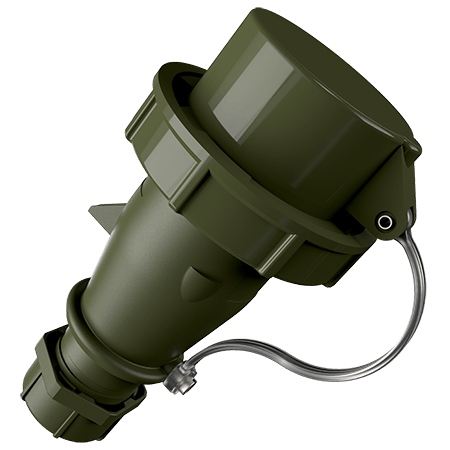

Plug TM 24670
Ampere
16 A
32 A
Poles
3 p
5 p
Voltage
230 V
400 V
440-460 V
50-500 V
Clock position
2 h
6 h
9 h
11 h
screw terminals
highly heat resistant contact carrier
nickel plated contacts
with protective cap
(form CP)
Part no.
24670
EAN
4015394260660
Std. Pack.
10
Add to shopping basket
Technical specifications
Plug TM 24670
Ampere
16 A
Poles
5 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
nickel plated contacts
highly heat resistant contact carrier
Protection type
IP67
Weight
261 g
Certifications
VDE
EAC
Datasheets & Downloads
Plug TM 24670
Product info
Plug TM 24670
PDF, 142 KB
Manufacturer‘s declaration
Plug TM 24670
PDF, 43 KB
CAD data STP
Plug TM 24670
ZIP, 1 MB
CAD data 3D DWG
Plug TM 24670
ZIP, 2 MB
Mounting instructions
Plug TM 24670
PDF, 2 MB
Dimensional drawing portrait
Plug TM 24670
PNG, 72 KB
Dimensional drawing landscape format
Plug TM 24670
PNG, 72 KB
Directives
Plug TM 24670
REACh
RoHS
Appropriate accessories
Plug TM 24670
Protective cover TM
Part no. 40927
for watertight plugs and inlets, (form G)
