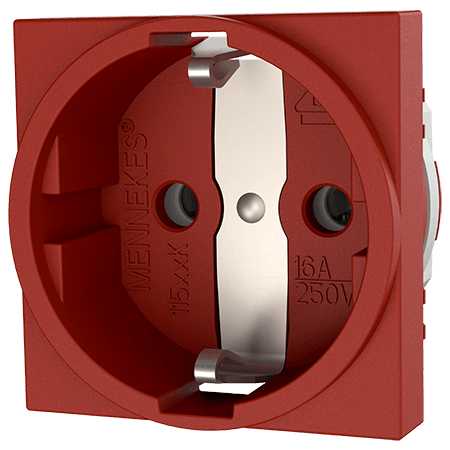

MENNEKES Snap-in socket SCHUKO® 11513K
MENNEKES Snap-in socket SCHUKO® 11513K images3d

Snap-in socket SCHUKO® 11513K

Ampere 16 A
Poles
Voltage
  • without hinged lid
  • with 3 plug-in terminals for connection of 1.5 – 2.5 mm²
  • for easy installation in a cable duct or an enclosure
  • for fixing on DIN rail with fixing rack 11254
  • Part no.11513K
  • EAN4015394200550
  • Std. Pack. 100

Technical specifications

Snap-in socket SCHUKO® 11513K

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter No
Flange 45x45 mm
Weight 32 g
Certifications VDE

Datasheets & Downloads

Snap-in socket SCHUKO® 11513K

Product infoSnap-in socket SCHUKO® 11513K PDF, 147 KB
Dimensional drawing portraitSnap-in socket SCHUKO® 11513K PNG, 61 KB
Dimensional drawing landscape formatSnap-in socket SCHUKO® 11513K PNG, 61 KB

Directives

Snap-in socket SCHUKO® 11513K

REACh
RoHS

Appropriate accessories

Snap-in socket SCHUKO® 11513K

MENNEKES Fixing rack 11254

Fixing rack

Part no. 11254

for fixing of snap-in sockets on DIN rails
