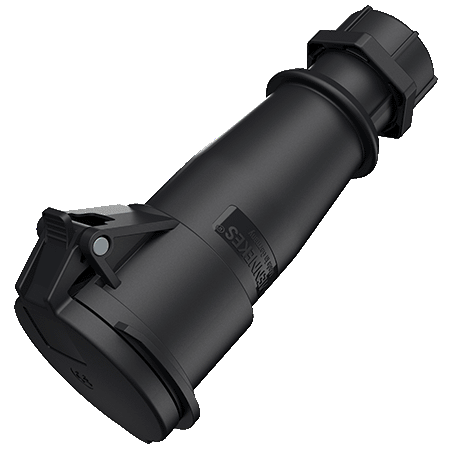

MENNEKES Connector AM-TOP® 6SW

Connector AM-TOP® 6SW

Ampere 16 A 32 A

Poles

Voltage

Clock position

single part body
with highly heat resistant contact carrier

cable gland and sealing

Part no.6SW
EAN4015394256946
Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 6SW

Ampere	32 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Weight	374 g

Dimensional drawing landscape format

Datasheets & Downloads

Connector AM-TOP® 6SW

Product infoConnector AM-TOP® 6SW PDF, 127 KB

Mounting instructionsConnector AM-TOP® 6SW PDF, 2 MB

Dimensional drawing portraitConnector AM-TOP® 6SW PNG, 76 KB

Dimensional drawing landscape formatConnector AM-TOP® 6SW PNG, 77 KB
