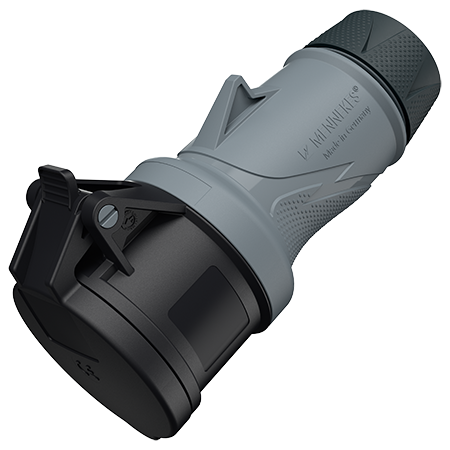

Connector PowerTOP® Xtra R with ErgoCONTACT 14594
All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT® inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.
- screw connection technology ErgoCONTACT
- X-CONTACT®
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip zones
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
Technical specifications
Connector PowerTOP® Xtra R with ErgoCONTACT 14594
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 600-690 V |
| Clock position | 5 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
nickel plated contacts highly heat resistant contact carrier |
| Protection type | IP54 |
| Weight | 254 g |
| Certifications |
VDE CB Zertifikat |
