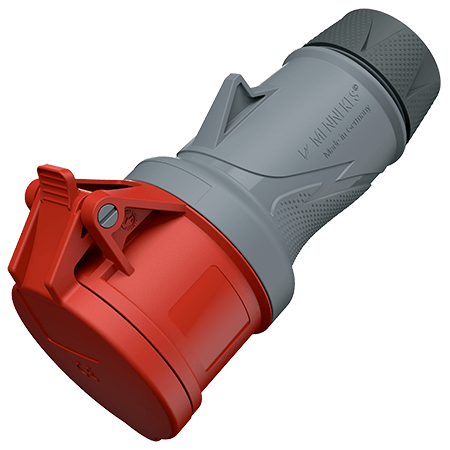

Connector PowerTOP® Xtra R with ErgoCONTACT 14612
All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT® inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.
Ampere
32 A
- screw connection technology ErgoCONTACT
- X-CONTACT®
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip areas
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slid
- area for self-adhesive labels
Technical specifications
Connector PowerTOP® Xtra R with ErgoCONTACT 14612
| Ampere | 32 A |
|---|---|
| Poles | 5 p |
| Voltage | 440-460 V |
| Clock position | 11 h |
| Hertz | 60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
nickel plated contacts highly heat resistant contact carrier X-CONTACT |
| Protection type | IP54 |
| Weight | 434 g |
| Certifications |
VDE CB Zertifikat |
