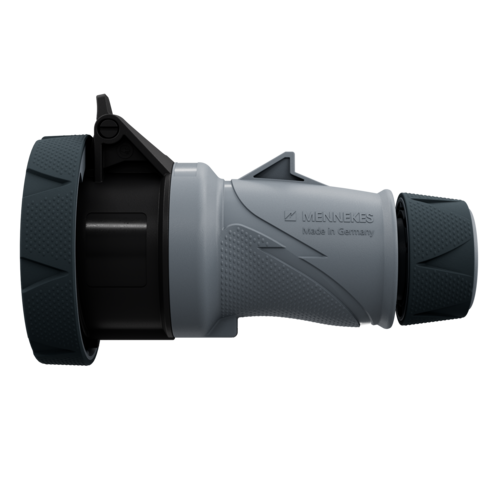

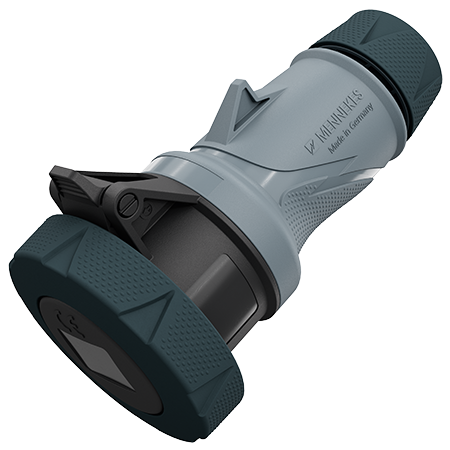

Connector PowerTOP® Xtra R with ErgoCONTACT 14655
Robust technology for tough environmental conditions - the PowerTOP® Xtra connector impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The connectors in the PowerTOP® Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
- screw connection technology ErgoCONTACT
- X-CONTACT®
- ergonomic enclosure design with nubbed grip zones
- highly heat resistant contact carrier
- nickel plated contacts
- rubberised cable gland with sealing
- rubberised bayonet ring
- sealed against dust, temporary submersion and high pressure cleaning
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
Technical specifications
Connector PowerTOP® Xtra R with ErgoCONTACT 14655
| Ampere | 32 A |
|---|---|
| Poles | 4 p |
| Voltage | 500 V |
| Clock position | 7 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
nickel plated contacts highly heat resistant contact carrier X-CONTACT |
| Protection type | IP67 / IP69 |
| Weight | 460 g |
