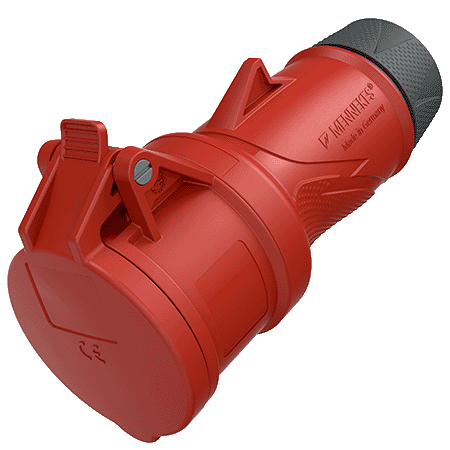

MENNEKES Connector PowerTOP® Xtra with ErgoCONTACT 14510
MENNEKES Connector PowerTOP® Xtra with ErgoCONTACT 14510 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP® Xtra with ErgoCONTACT 14510

All versions of the PowerTOP® Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT® inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP® Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • X-CONTACT®
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14510
  • EAN4015394289357
  • Std. Pack. 10 Qty.
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Connector PowerTOP® Xtra with ErgoCONTACT 14510

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact X-CONTACT
Protection type IP54
Weight 274 g
Certifications VDE
CQC
CB Zertifikat

Datasheets & Downloads

Connector PowerTOP® Xtra with ErgoCONTACT 14510

Product infoConnector PowerTOP® Xtra with ErgoCONTACT 14510 PDF, 1 MB
Manufacturer‘s declarationConnector PowerTOP® Xtra with ErgoCONTACT 14510 PDF, 210 KB
CAD data STPConnector PowerTOP® Xtra with ErgoCONTACT 14510 ZIP, 3 MB
CAD data 3D DWGConnector PowerTOP® Xtra with ErgoCONTACT 14510 ZIP, 5 MB
Mounting instructionsConnector PowerTOP® Xtra with ErgoCONTACT 14510 PDF, 2 MB
Dimensional drawing portraitConnector PowerTOP® Xtra with ErgoCONTACT 14510 PNG, 189 KB
Dimensional drawing landscape formatConnector PowerTOP® Xtra with ErgoCONTACT 14510 PNG, 339 KB

Videos

Connector PowerTOP® Xtra with ErgoCONTACT 14510

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Connector PowerTOP® Xtra with ErgoCONTACT 14510

REACh
RoHS
