Show all 7 pole
/
Show all Panel mounted socket

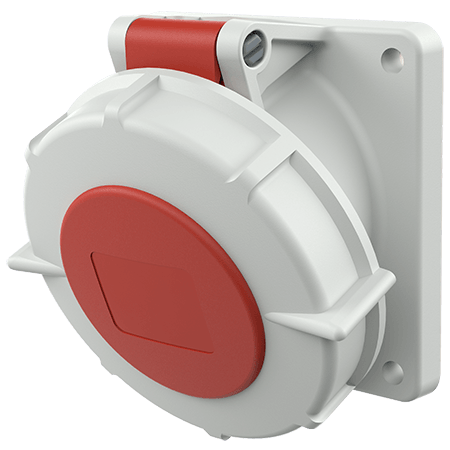

Panel mounted socket 1096
Ampere
16 A
32 A
Poles
7 p
Voltage
400 V
Clock position
6 h
screw terminals
highly heat resistant contact carrier
nickel plated contacts
uniform fixing hole spacing
suitable for through wiring
20° inclination
sockets are designed for adding an auxiliary contact switch
Part no.
1096
EAN
4015394220565
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1096
Ampere
16 A
Poles
7 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
20 °
Weight
252 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 1096
Product info
Panel mounted socket 1096
PDF, 147 KB
CAD data STP
Panel mounted socket 1096
ZIP, 1 MB
CAD data 3D DWG
Panel mounted socket 1096
ZIP, 2 MB
Mounting instructions
Panel mounted socket 1096
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 1096
PNG, 82 KB
Dimensional drawing landscape format
Panel mounted socket 1096
PNG, 82 KB
Directives
Panel mounted socket 1096
REACh
RoHS
